SMART INDUSTRIAL MONITORING

Intelligent Monitoring Systems

Integrated monitoring platforms for power distribution, HVAC, cold chain, and smart building environments. Real-time data acquisition, cloud connectivity, alarm management, and remote access through web and mobile interfaces.
Request a Quote Browse All Pressure Products

Smart Monitoring Platforms

Scalable monitoring systems from compact single-site units to enterprise-grade platforms for critical infrastructure.

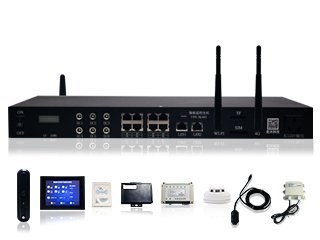

HL600 Smart Monitoring System

HL600

Compact monitoring unit for small to mid-size sites. Built-in display and local data storage.

Channels: 4~16 inputs

Display: 4.3″ LCD

Power: DC 12-24V

View Details

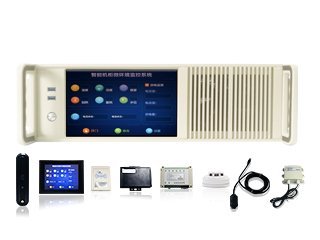

HL700 Smart Monitoring System

HL700

Multi-channel environmental monitoring platform with touchscreen interface.

Channels: 8~64 inputs

Display: 7″ touchscreen

Protocol: RS485/Modbus

View Details

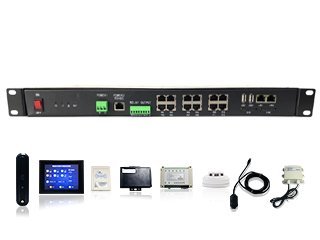

HL800 Smart Monitoring System

HL800

Advanced monitoring with built-in cloud connectivity for remote access and data analysis.

Channels: 16~128 inputs

Network: Ethernet + 4G

Cloud: MQTT/HTTP API

View Details
HL900 Smart Monitoring System

HL900 Smart Monitoring System

HL900 SERIES
Windows-based intelligent monitoring system with Intel i7 processor, capacitive touchscreen (10.4”–21.5”), multi-protocol communication, and embedded installation design for power & environmental monitoring.
View Details

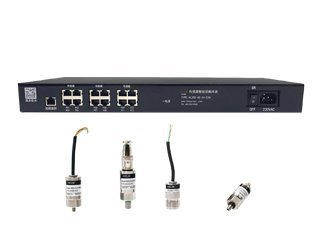

HL300 Industrial Data Acquisition

HL300

Industrial-grade multi-channel data logger with SD card storage and USB interface.

Channels: 8~32 analog

Storage: SD card + USB

Interface: RS485

View Details

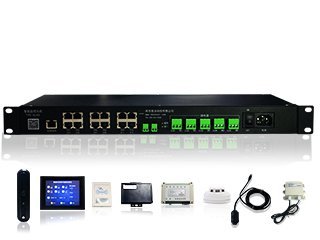

HL200 Power and Environment Monitor

HL200

Combined power quality and environmental monitoring for equipment rooms and data centers.

Inputs: V + A + Temp + Humidity

Display: LCD panel

Alert: SMS / Email

View Details

How to Choose the Right Monitoring System

Step 1 — Count your measurement channels: Small sites (4-16 sensors) → HL600. Medium sites (8-64 sensors) → HL700. Large facilities (16-256 sensors) → HL800 or HL900.

Step 2 — Determine connectivity needs: Local display only → HL600/HL700. Cloud dashboard and remote access → HL800. Enterprise integration with SCADA/BMS → HL900.

Step 3 — Special requirements: Stand-alone data logging → HL300. Power monitoring + environment → HL200. Critical infrastructure with redundancy → HL900.

Frequently Asked Questions

Yes. The HL800 and HL900 support standard industrial protocols including Modbus TCP/RTU, MQTT, BACnet, and OPC-UA. They can serve as data concentrators feeding into your existing SCADA, BMS, or cloud platform. Custom protocol adapters are available on request.

Yes, we offer a cloud monitoring platform with real-time dashboards, historical data analysis, alarm notifications (SMS/email/push), and multi-user access. The platform supports web browsers and mobile apps. For enterprise clients, we can deploy a private cloud instance on your infrastructure.

All HAMMOK pressure transmitters, temperature sensors, and level transmitters connect directly via 4-20mA or RS485/Modbus. Third-party 4-20mA and Modbus RTU sensors are also fully compatible. The HL200 includes built-in sensors for voltage, current, temperature, and humidity measurement.

Need a Custom Monitoring Solution?

Tell us about your facility — number of measurement points, communication infrastructure, and integration requirements. Our system engineers will design a complete monitoring architecture including sensors, data acquisition, and cloud platform.

Our engineers typically respond within 12 business hours with detailed technical specifications and pricing.
